ABOUT BLAZECUT
- Compact & Versatile: BlazeCut Tube protects A, B, C, and electrical fires with no cylinder required, fitting inside enclosures.
- Automatic & Independent: Heat‑sensitive tube activates at high temperatures, operates 24/7 without power, and requires zero maintenance.
- Safe & Effective: Uses globally accepted HFC‑227ea agent, harmless to people and equipment, with long service life up to 10 years.
- Simple Installation & Monitoring: Easy to secure with cable ties/clamps, includes pressure gauge and optional switch for added safety functions.
EFFICIENT AND ENVIRONMENTALLY FRIENDLY
CLEAN EXTINGUISHING
HFC-227ea clean extinguishing agent is a liquefied gas used for volume fire suppression. HFC clean extinguishing agent is discharged as a stream of gas and liquid droplets that penetrate into the fire area, ceasing the combustion process through heat absorption and a chemical interaction. HFC clean extinguishing agent is considered environmentally accepted substitute for Halon extinguishing agents used in the past, which are harmful to the ozone layer.
BlazeCut T Series system uses liquefied gas, HFC-227ea fire extinguishing agent. The extinguishing agent is a world- wide known and accepted gaseous clean agent used for total flooding fire suppression applications with very high effectivity, zero ozone depletion potential and safe to people. It is the agent of choice for protection of enclosures.

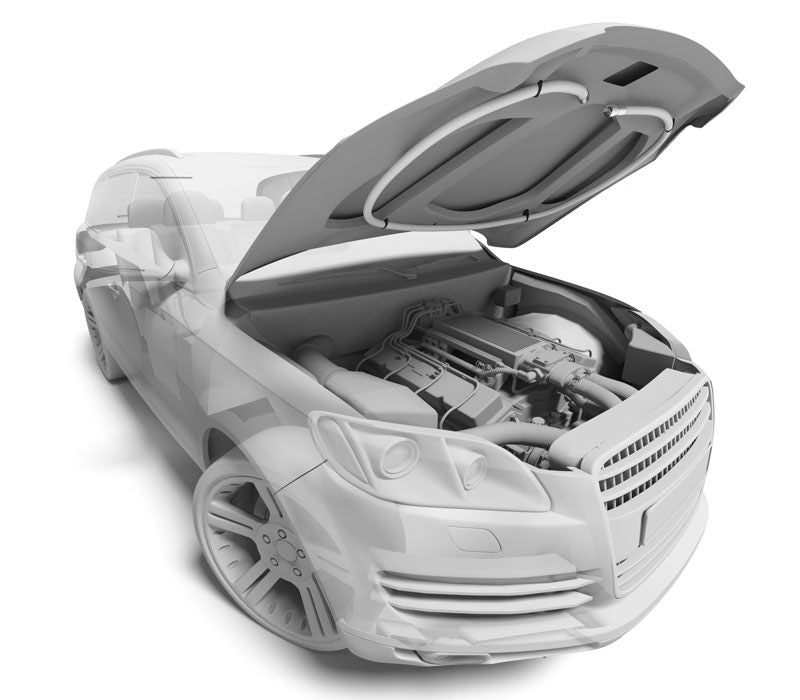

VEHICLE PROTECTION
AUTOMOTIVE & MACHINERY
Vehicle fires are an issue all over the world and the number of such fires increases each year. Majority of vehicle fires have its source in the engine compartment. The most dangerous sources of fires in the engine compartments include electrical arcing, overloaded wiring, hot surfaces, mechanical sparks, electrical sources. The engine compartments of vehicles are one of the most critical environments due to the increased risk of fire and in terms of extinguishing. Tight space, hot environment, changing temperatures, and air flow have substantial impact on extinguishing and pose a challenge for every fire suppression system. BlazeCut “T” Series systems help protect engine compartments by capturing the staring fire or by suppressing the fire giving the crew time for further action. Easy installation, no maintenance and affordability makes this system a perfect first line fire protection of the engine compartment of small vehicles and pleasure boats. BlazeCut “T” Series systems with integreated pressure switch, add "S" as suffix when ordering. eg. TxxxES
HOME HOBBYISTS

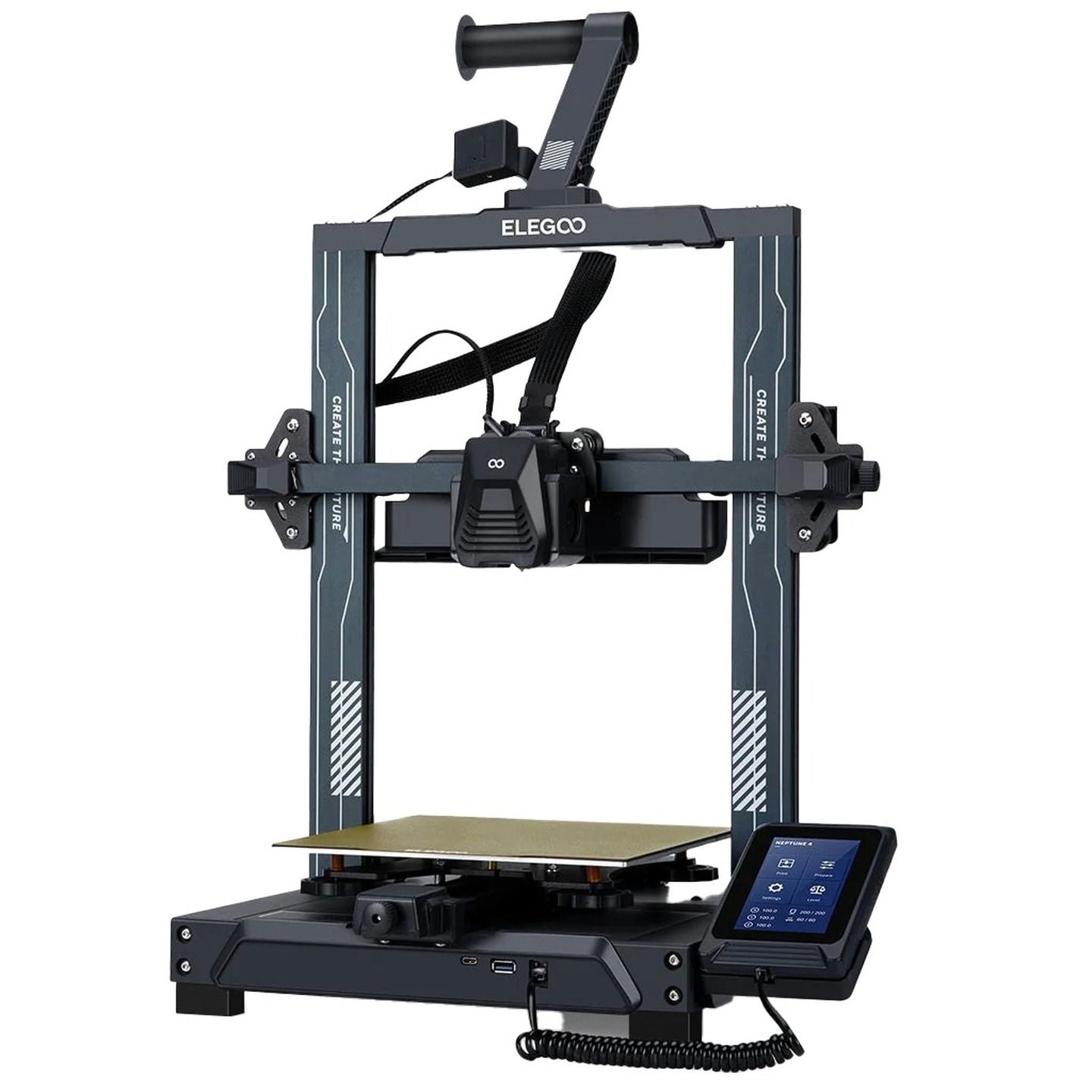

3D PRINTERS
Home hobbyists are becoming more and more popular and many owners never consider the fire risks or consequences of not being adequately equipped should a fire occur. Fires can start small but can quickly escalate and major loss of property or even life can occur.
3D printers and laser cutters can be left unattended so having an automatic system should be a basic consideration to avoid any accidents with the equipment. Despite being present in such a situation, at such a distressful time many end up not recalling the imminent danger of opening a hood during fire and the risk of the fire flaring up and burning them is extremely high.
CHOOSING THE RIGHT ONE FOR YOU

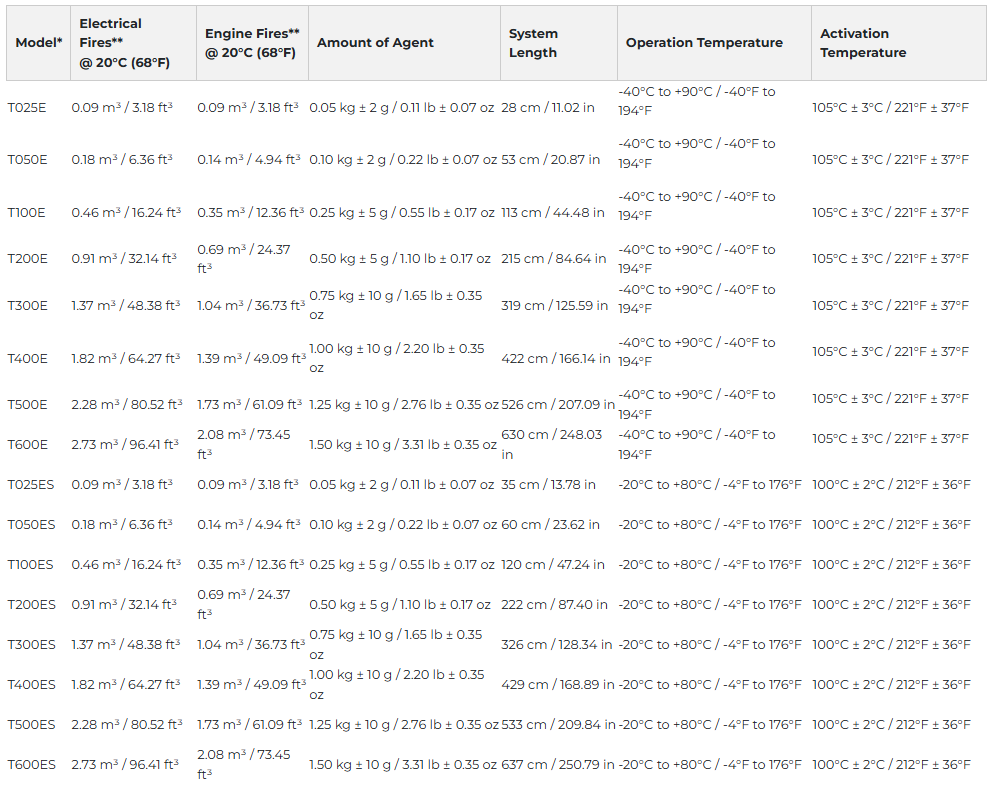

Applications can be calculated by a simple process, measure the sealed enclosures Width x Height x Depth in metres or feet and this will calculate your required volume in m3 or ft3. Then refer to the chart below for the maximum volume protected for electrical or engine applications to select the suitable T Series model. Note: the enclosure should be enclosed or have minimal ventilation. The T Series system is not suitable for open areas. For vehicle applications please refer to our application guide that can be found online at www.blazecut.com
*Letter “S” in model designation stands for an integrated pressure switch that allows connection of a signaling device of to perform a shutdown operation at time of agent discharge. TxxxE does not require power.
** Calculated design concentration 7% (Electrical Fires) and 9% (Engine Fires) and an ambient temperature of 20°C (68°F) for the enclosure. Please note if a lower temperature is present the coverage potential will be reduced, please contact your local BlazeCut agent for further information.

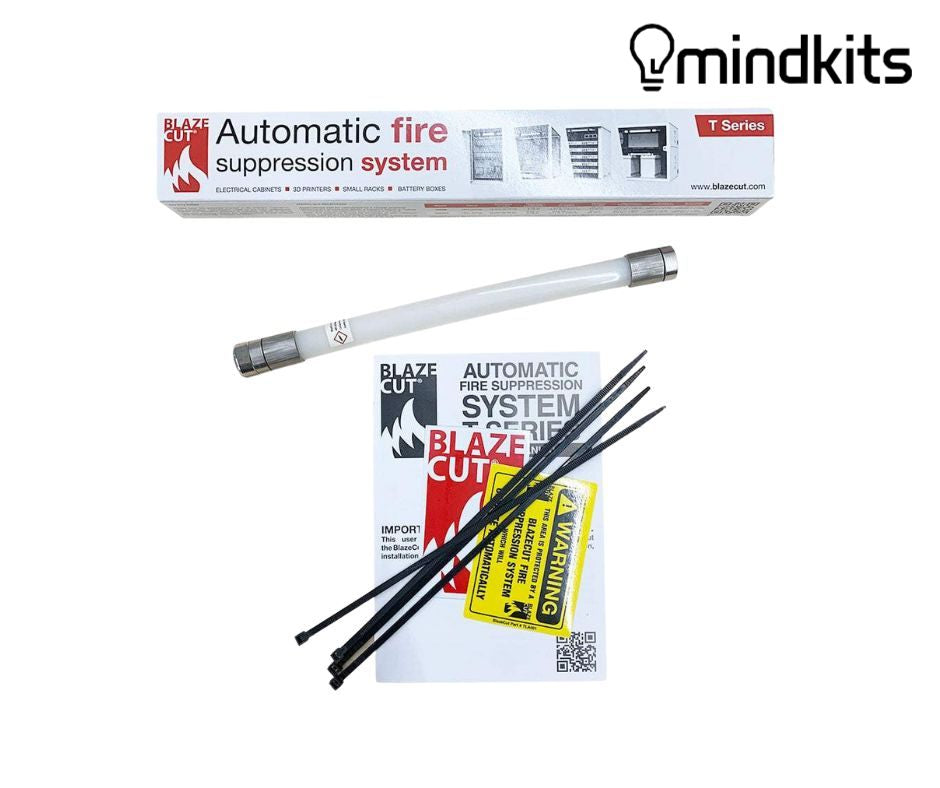

IN THE BOX
- Blazecut T Series Automatic Fire Suppression *1
- Nylon Straps
- Stickers
